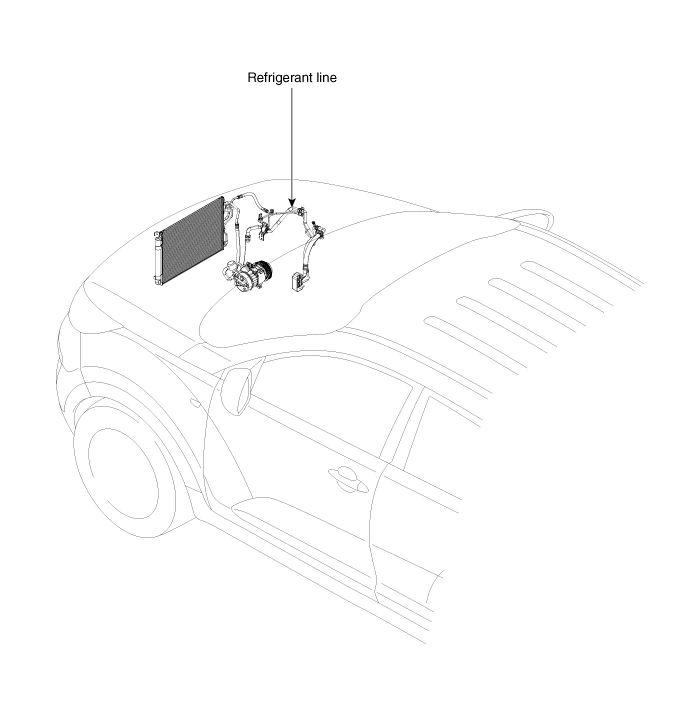

Kia Sportage: Refrigerant line: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Air Conditioning System / Refrigerant line: Components and Components Location

Compressor Oil: Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (P ...

Refrigerant line: Repair procedures

Replacement 1. Discharge refrigerant from refrigeration system. 2. Replace faulty tube or hose.     Cap the open fittings immediately to keep moisture or dirt out of ...
