Kia Sportage: ESC Control Module: Components and Components Location - ESC(Electronic Stability Control) System - Brake System - Kia Sportage SL Service & Repair ManualKia Sportage: ESC Control Module: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Module: Components and Components Location

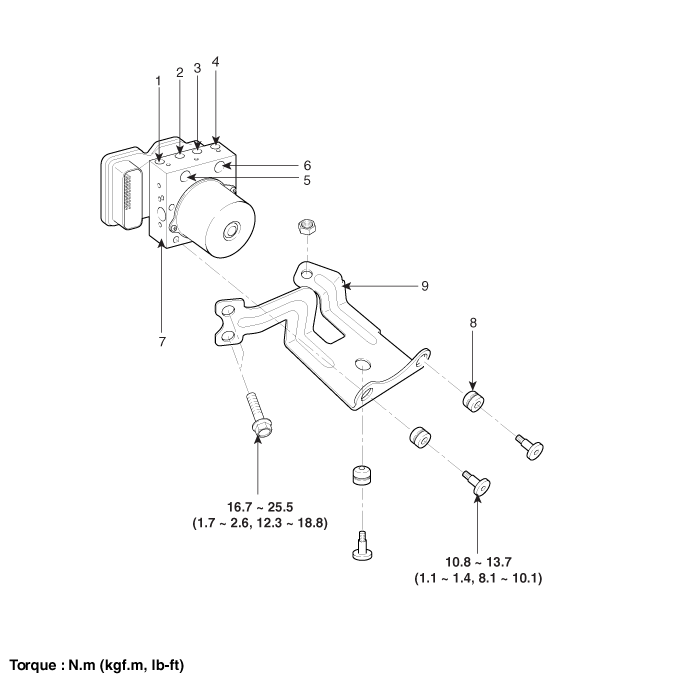

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ESC control module(HECU)
8. Damper
9. Bracket

EBD(Electronic Brake-force Distribution): Description and Operation
Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes the e ...

ESC Control Module: Repair procedures
Removal 1. Turn the ignition switch OFF. 2. Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner. Tightening torque : 12.7 ~ 16.7N.m(1.3 ~ 1.7kgf. ...
