Kia Sportage: Muffler: Components and Components Location - Intake And Exhaust System - Engine Mechanical System - Kia Sportage SL Service & Repair ManualKia Sportage: Muffler: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Mechanical System / Intake And Exhaust System / Muffler: Components and Components Location

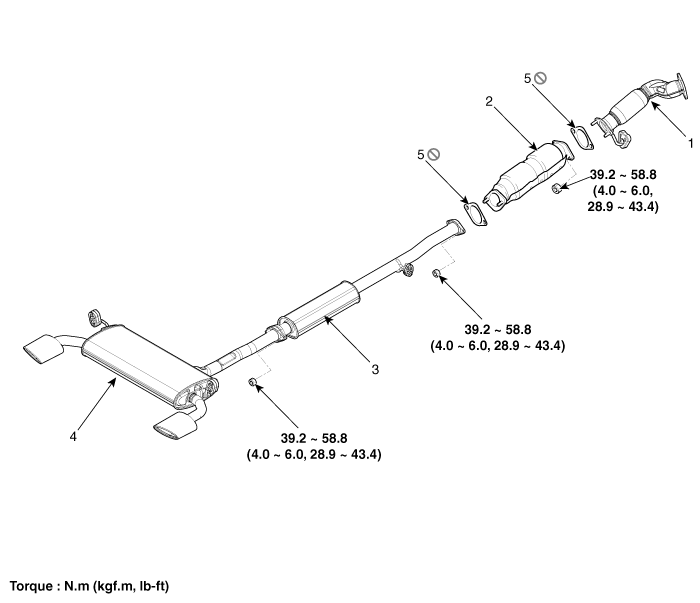

Components

1. Front muffler
2. Catalytic converter
3. Center muffler
4. Main muffler
5. Gasket
