Kia Sportage: Towing service - Towing - What to do in an emergency - Kia Sportage SL Owners ManualKia Sportage: Towing service

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / What to do in an emergency / Towing / Towing service

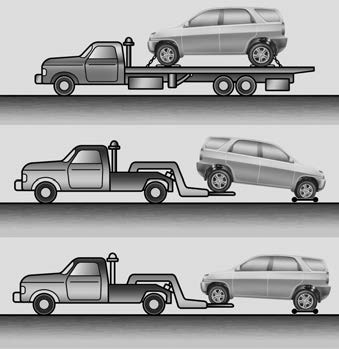

If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies or flatbed is recommended.

For trailer towing guidelines information, refer to “Trailer towing” in section 5.

On 4WD vehicles, your vehicle must be towed with a wheel lift and dollies or flatbed equipment with all the wheels off the ground.

CAUTION - Towing vehicle

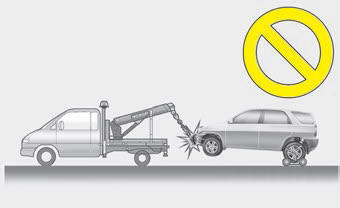

Do not tow 4WD vehicles with the front wheels on the ground. This can cause serious damage to the transaxle or the 4WD system.

On 2WD vehicles, it is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels.

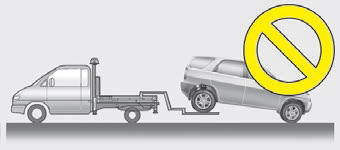

When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

WARNING - Side and curtain AB

If your vehicle is equipped with side and curtain air bag, set the ignition switch to LOCK or ACC position when the vehicle is being towed.

The side and curtain air bag may deploy when the ignitions is ON, and the rollover sensor detects the situation as a rollover.

CAUTION - Towing

When towing your vehicle in an emergency without wheel dollies :

1.Set the ignition switch in the ACC position.

2.Place the transaxle shift lever in N (Neutral).

3.Release the parking brake.

CAUTION - Towing gear position

Failure to place the transaxle shift lever in N (Neutral) may cause internal damage to the transaxle.

✽ NOTICE

Towing requires additional equipment. See Owner's Manual for towing capacity, additional instructions and warnings. Always use caution while towing.

Towing
...

Removable towing hook
Front Rear 1.Open the tailgate, and remove the towing hook from the tool case. 2.Remove the hole cover pressing the lower part of the cover on the bumper. 3.Install the towing hook by turning ...
