Kia Sportage: Manual climate control system

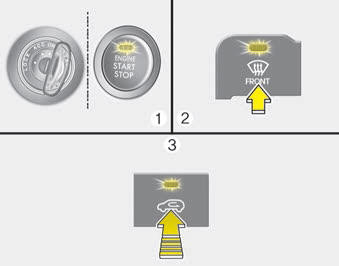

1.Turn the ignition switch to the ON position.
2.Turn the mode selection knob to the defrost position (
).
3.Press the air intake control button at least 5 times within 3 seconds.
The indicator light in the air intake control button will blink 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.
If the battery has been discharged or disconnected, it resets to the defog logic status.
Defogging logic
To reduce the possibility of fogging up the inside of the windshield, the air
intake or air conditioning is controlled automatically according to certain conditions
such as or
position. To canc ...
Automatic climate control system
1.Turn the ignition switch to the ON position.
2.Select the defroster position pressing the defroster button ().
3.While pressing the air conditioning button (A/C), press the air intake control
...
