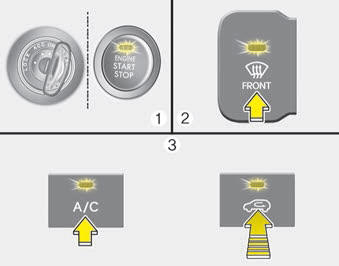

1.Turn the ignition switch to the ON position.
2.Select the defroster position pressing the defroster button ().
3.While pressing the air conditioning button (A/C), press the air intake control button at least 5 times within 3 seconds.
The A/C display blinks 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.
If the battery has been discharged or disconnected, it resets to the defog logic status.
Oil hydraulic Motor(Actuator): Schematic Diagrams
Circuit Diagram
...
Blower Unit: Components and Components Location
Component Location
Components
1. Intake case (LH)2. Intake case (RH)3. Blower motor4. Intake door5. Intake actuator6. Mofet [Auto type]7. Resistor [Manual type]8. Climate control air filter cove ...
