Kia Sportage: Front Door: Components and Components Location - Exterior - Body (Interior and Exterior) - Kia Sportage SL Service & Repair ManualKia Sportage: Front Door: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body (Interior and Exterior) / Exterior / Front Door: Components and Components Location

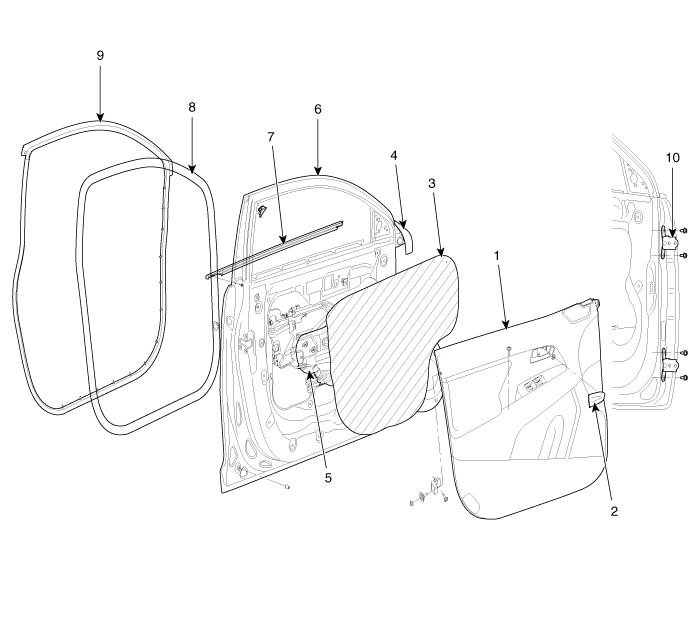

Components

1. Front door trim
2. Front door inside handle cap
3. Front door trim seal
4. Front door quadrant inner cover
5. Front door module
6. Front door panel
7. Front door belt outside moulding
8. Front door body side weatherstrip
9. Front door side weatherstrip
10. Front door hinge
