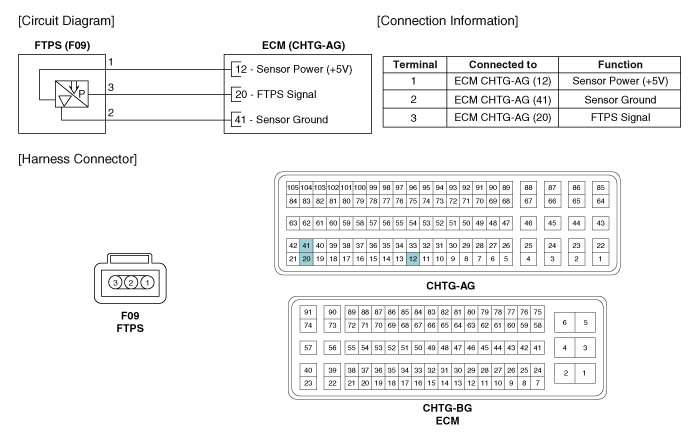

Circuit Diagram

Fuel Tank Pressure Sensor (FTPS): Specifications
Specification Pressure[kPa (kgf/cm?, in H2O)Output Voltage (V)-6.67 (-0.068, -26.8)0.502.5+6.67 (0.068, 26.8)4.5 ...

Fuel Tank Pressure Sensor (FTPS): Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specification: Refer to "Specification" Removal 1. Turn the ignition swit ...
