Before opening or closing the sunroof, open the roller blind (refer to the following page for instructions on how to use the roller blind).

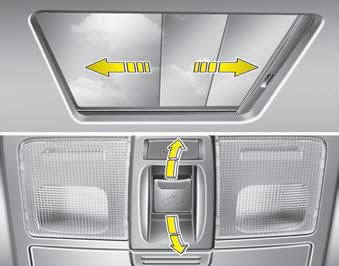

To open or close the sunroof (manual slide feature), pull or push the sunroof control lever backward or forward to the first detent position.
Pulling the control lever downward also closes the sunroof.
To open the sunroof automatically:
Pull the sunroof control lever backward to the second detent position and then release it. The sunroof will slide open all the way automatically.
To stop the sunroof sliding at any point, pull or push the sunroof control lever momentarily.
To close the sunroof automatically:
Push the sunroof control lever forward to the second detent position and then release it. The sunroof will automatically close all the way.
To stop the sunroof sliding at any point, pull or push the sunroof control lever momentarily.
