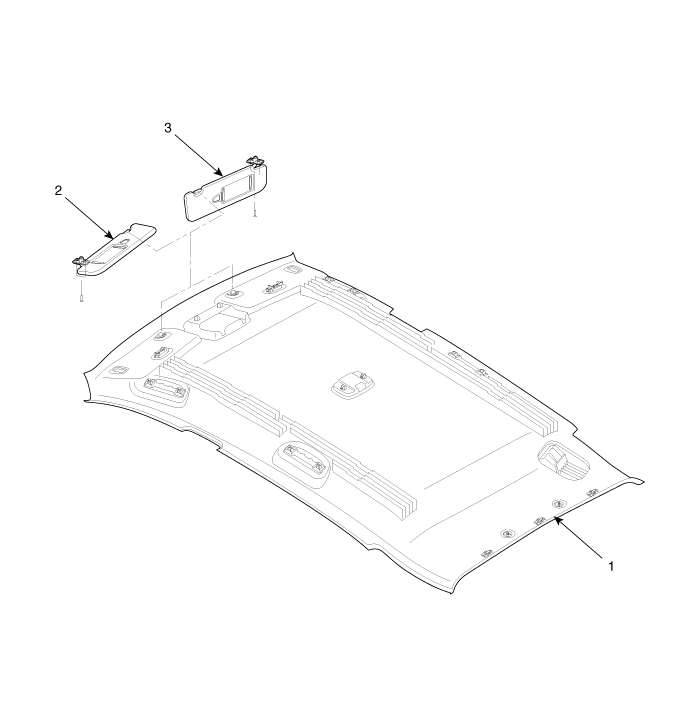

Components

1. Roof trim
2. Sunvisor [Driver''s]
3. Sunvisor [Passenger''s]

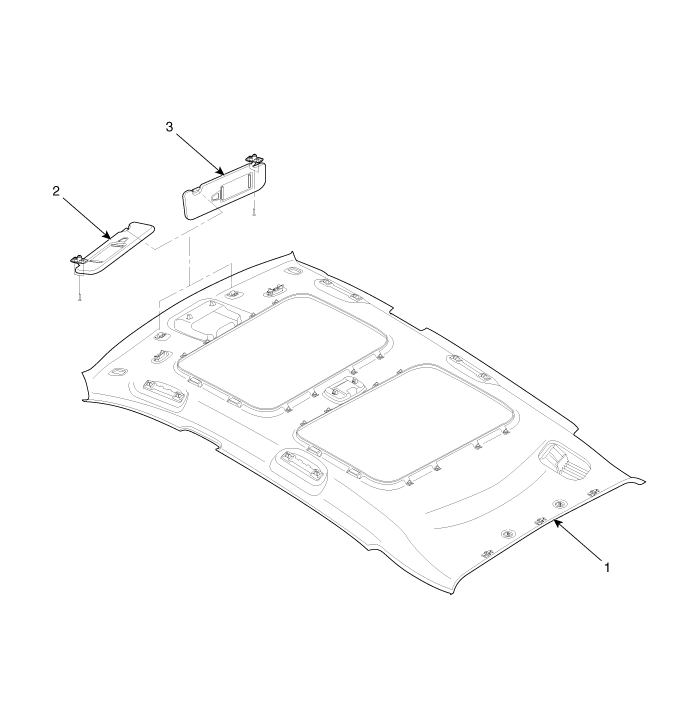

Components [Panoramaroof]

1. Roof trim
2. Sunvisor [Driver''s]
3. Sunvisor [Passenger''s]
