Component Location

Components and Components Location

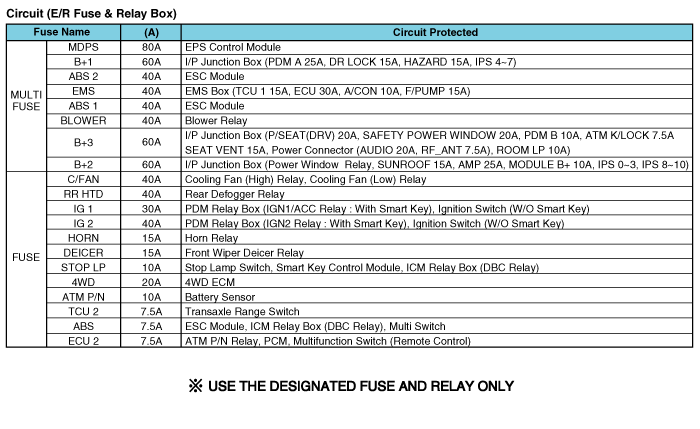

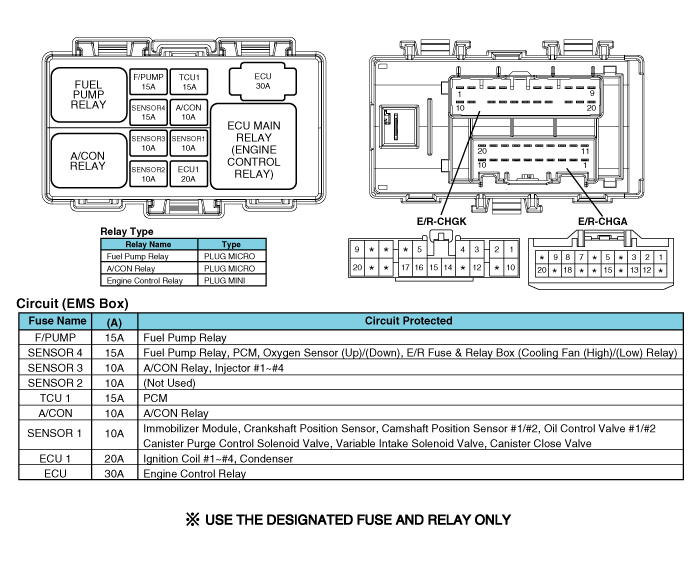

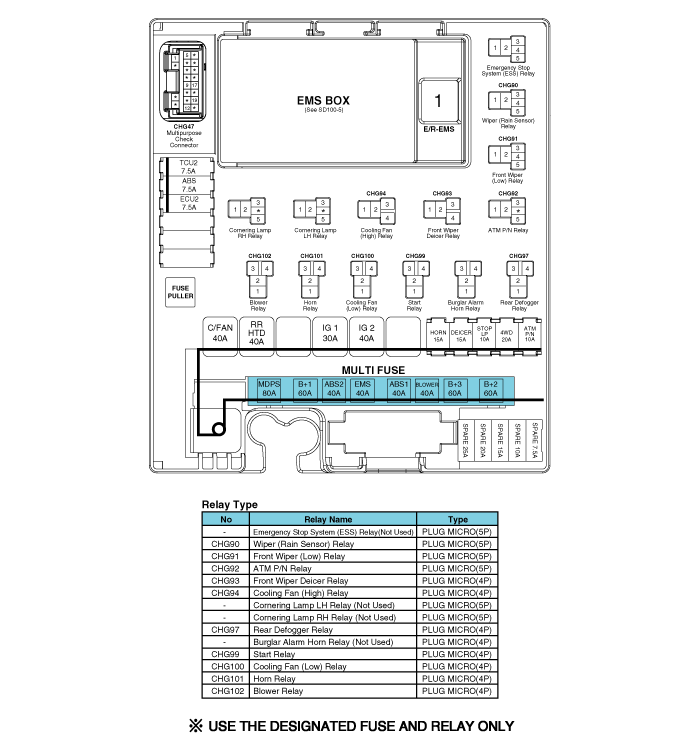

Component Location 1. Main relay2. Cooling fan relay (High)3. Windshield deicer relay4. Wiper relay (High)5. Wiper relay (Low)6. ATM relay7. Rear glass defogger relay8. Burglar horn relay 9. Star ...

Relay Box (Engine Compartment): Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. A ...
