Kia Sportage: Components and Components Location - Fuses And Relays - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Fuses And Relays / Components and Components Location

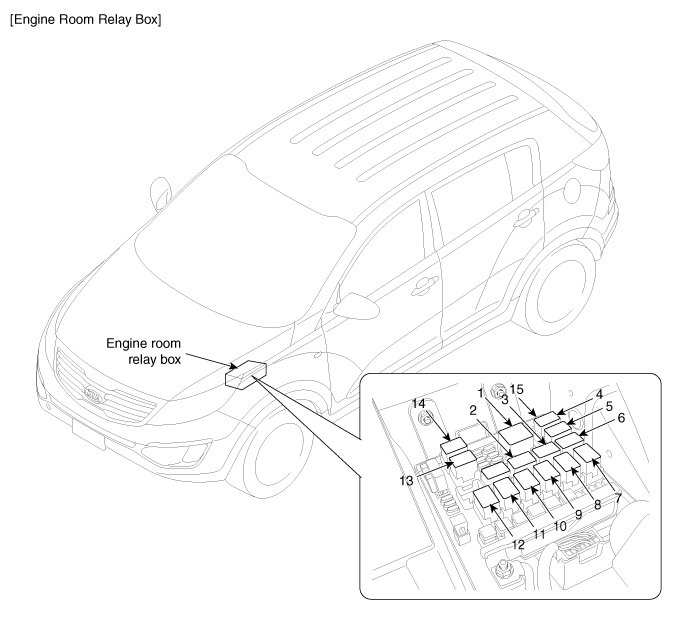

Component Location

1. Main relay
2. Cooling fan relay (High)
3. Windshield deicer relay
4. Wiper relay (High)
5. Wiper relay (Low)
6. ATM relay
7. Rear glass defogger relay
8. Burglar horn relay
9. Start relay
10. Cooling fan relay (Low)
11. Horn relay
12. Blower relay
13. A/C relay
14. Fuel pump relay
15. Quick braking warning system relay

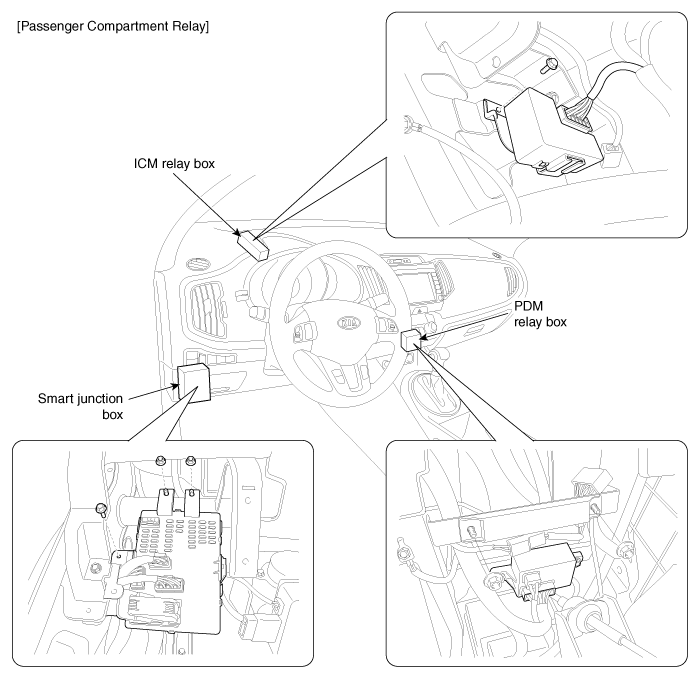

1.
ICM relay : Rear wiper relay, DBC(Downhill Brake Control) relay
2.
PDM relay : ACC relay, IG1 relay, IG2 relay
