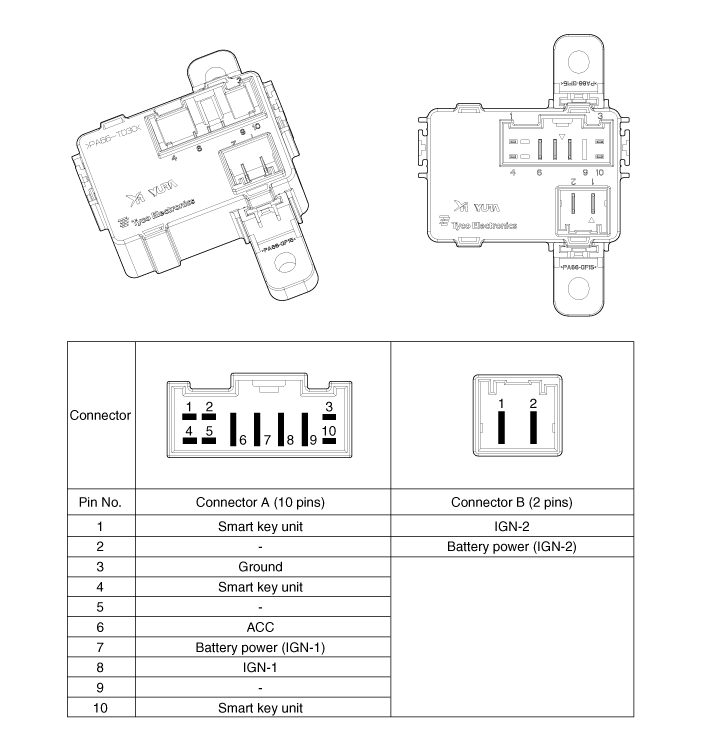

Kia Sportage: PDM Relay Box: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Fuses And Relays / PDM Relay Box: Components and Components Location

ICM (Integrated Circuit Module) Relay Box: Repair procedures

Inspection Rear Wiper Relay Check for continuity between the terminals. 1. There should be continuity between the No.11 in the A and No.12 in the A terminals when power and ground are connect ...

PDM Relay Box: Description and Operation

Description The PDM relay (A) is united with IG1, IG2 and ACC relays and installed in the lower center fascia panel. ...
