Kia Sportage: Parking Brake Assembly: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Brake System / Parking Brake System / Parking Brake Assembly: Components and Components Location

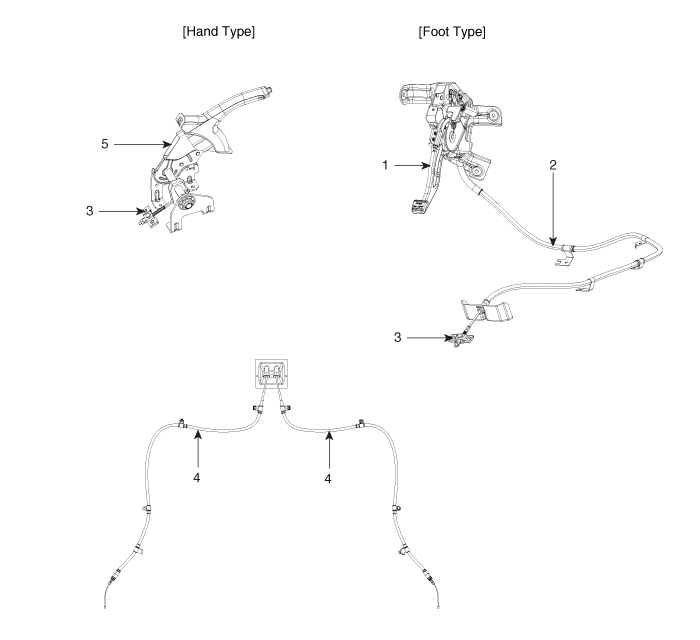

| Components (1) |
| 1. Parking brake pedal assembly 2. Front parking brake cable (Foot type only) 3. Equalizer assembly | 4. Rear parking brake cable 5. Parking brake lever assembly |
| Components (2) |
| 1. Backing plate 2. Brake shoe | 3. Shoe hold clip 4. Bolt |

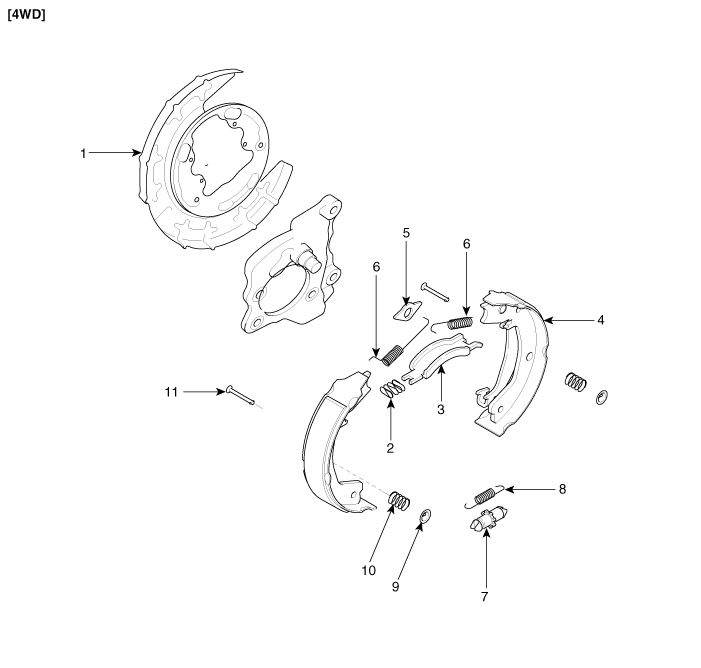

| Components (3) |
| 1. Backing plate 2. Strut spring 3. Strut 4. Shoe and lining 5. Shoe guide 6. Return spring | 7. Adjuster 8. Return sping 9. Cup washer 10. Shoe hold down spring 11. Shoe hold down pin |
Parking Brake Assembly: Repair procedures
Removal
Parking Brake Pedal [Foot type]
1.
Remove the crash pad lower panel and reinforcement panel. (Refer to the Body group-crash pad)
2.
Remove the junction box. (Refer to the Body Electri ...
