Kia Sportage: Oil hydraulic Motor(Actuator): Schematic Diagrams - Coupling Assembly - 4 Wheel Drive (4WD) System - Kia Sportage SL Service & Repair ManualKia Sportage: Oil hydraulic Motor(Actuator): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator): Schematic Diagrams

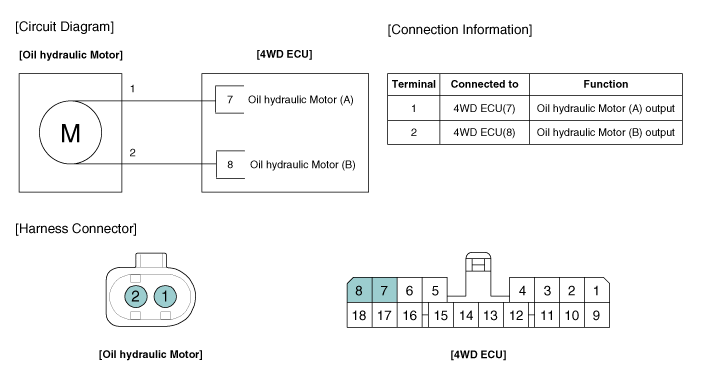

Circuit Diagram

Oil hydraulic Motor(Actuator): Description and Operation
Description The 4WD ECM controls the Pump Motor Pump (Actuator) to generating an oil pressure. The pressure engages a multiple disk clutch to transfer torque to the rear wheels. The torque to t ...

Oil hydraulic Motor(Actuator): Repair procedures
Inspection     If you have trouble code related to the oil hydraulic motor(actuator) (P1825, P1826, P1827, P1828), check oil hydraulic motor (actuator) according to the ...
