Components |

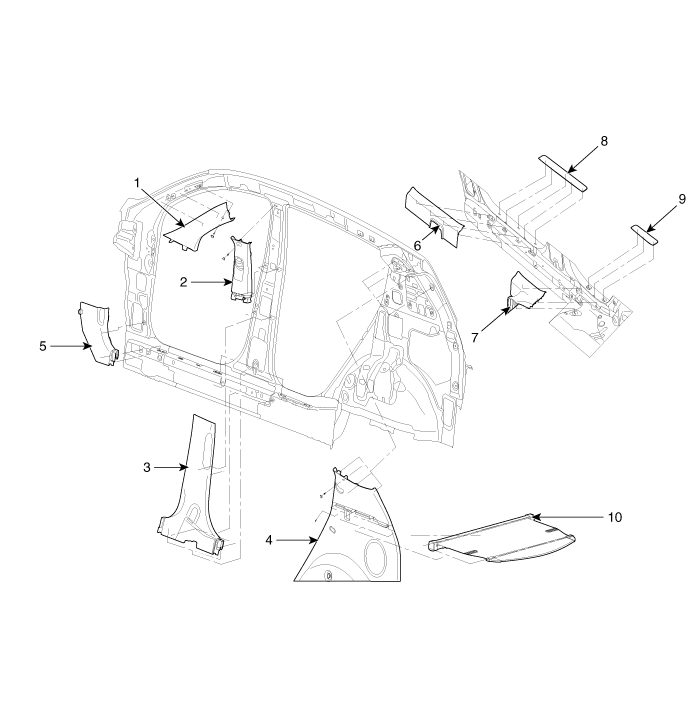

1. Front pillar trim 2. Center pillar upper trim 3. Center pillar lower trim 4. Luggage side trim 5. Cowl side trim | 6. Front door scuff trim 7. Rear door scuff trim 8. Front step trim 9. Rear step trim 10. Cargo screen |
ICM (Integrated Circuit Module) Relay Box: Repair procedures
Inspection
Rear Wiper Relay
Check for continuity between the terminals.
1.
There should be continuity between the No.11 in the A and
No.12 in the A terminals when power and ground are connect ...
Indicator light
When the ignition switch is turned ON, the indicator light illuminates, then
goes off if ESC system is operating normally.
The ESC indicator light blinks whenever ESC is operating and illuminates ...
