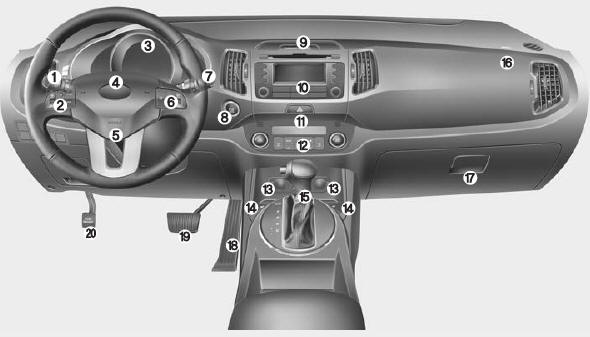

Kia Sportage: Instrument panel overview
1. Lighting controls / Turn signals
2. Steering wheel audio controls
3. Instrument cluster
4. Horn
5. Driver’s front air bag
6. Cruise controls
7. Wiper/Washer switch
8. ENGINE START/STOP button
9. Passenger Air bag OFF indicator
10. Audio
11. Hazard warning flasher
12. Climate control system
13. Power outlet
14. Seat heater switch (with air ventilation)
15. Shift lever
16. Passenger’s front air bag
17. Glove box
18. Accelerator pedal
19. Brake pedal
20. Parking brake pedal
Interior overview
1. Door lock/unlock button
2. Outside rearview mirror control switch
3. Central door lock switch
4. Power window lock button
5. Power window switches
6. Rear parking assist system OFF button
7 ...
Engine compartment
GDI engine
■ T-GDI engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch* fluid reservoir
4. Positive battery terminal
5. Negative battery terminal
6. Fuse box
...
Other Information:
Driver Airbag (DAB) Module and Clock Spring: Description and Operation
Description
Driver Airbag (DAB) is installed in the steering wheel and
electrically connected to SRSCM via the clock spring. It protects the
driver by deploying the airbag when frontal crash oc ...
Audio Remote Control: Components and Components Location
Component Location
1. Audio remote control switch (Left)2. Audio remote control switch (Right)3. Bluetooth switch4. Voice switch5. Audio remote control switch6. Cruise remote control switch
...
