Kia Sportage: Pressure Sensor: Schematic Diagrams - Coupling Assembly - 4 Wheel Drive (4WD) System - Kia Sportage SL Service & Repair ManualKia Sportage: Pressure Sensor: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor: Schematic Diagrams

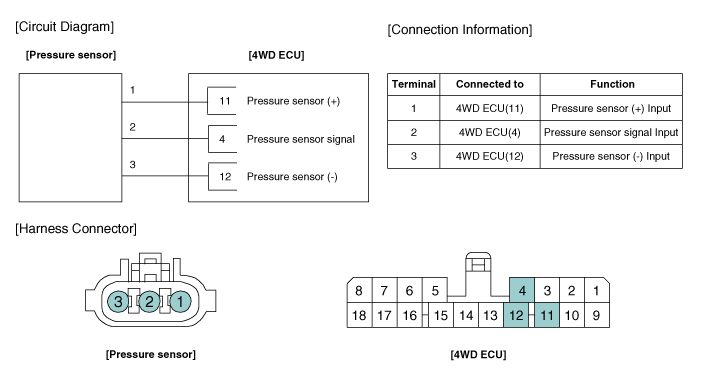

Circuit Diagram

Pressure Sensor: Description and Operation
Description The 4WD ECU makes a Motor Pump(Actuator) turn round for generating an oil pressure. And then it presses a multiple disk clutch and transfers the generated torque into rear wheels. I ...

Pressure Sensor: Repair procedures
Inspection     If you have trouble code related to the pressure sensor (P1825, P1826, P1827, P1828), check pressure sensor according to the inspection process. Pre ...
