Kia Sportage: Injector: Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Injector: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Injector: Schematic Diagrams

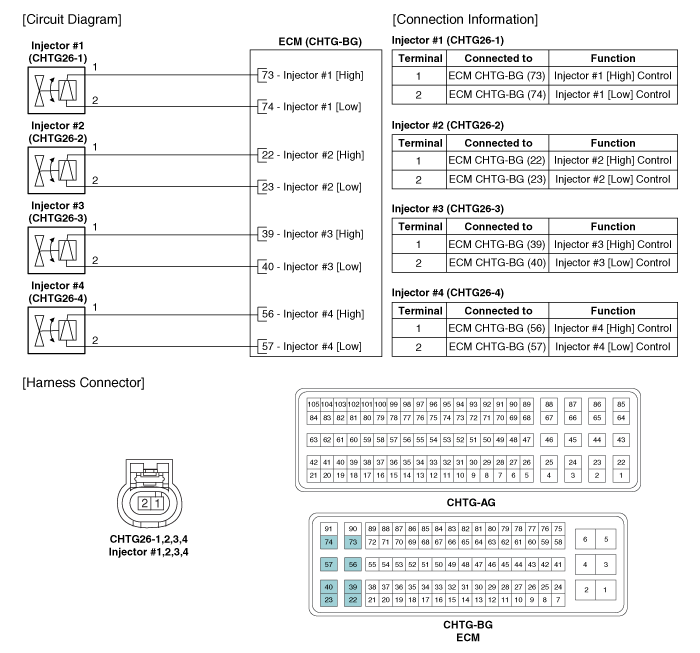

Circuit Diagram

Injector: Troubleshooting
Signal Waveform The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is fro ...

Injector: Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the injector terminals 1 and 2. 4. Check that the resistance is within t ...
