WARNING - Hot liquids
Do not place uncovered cups with hot liquid in the cup holder while the vehicle is in motion. If the hot liquid spills, you may burn yourself. Such a burn to the driver could lead to loss of control of the vehicle.
✽ NOTICE
When cleaning spilled liquids, do not dry the cup holder at high temperature. This may damage the cup holder.

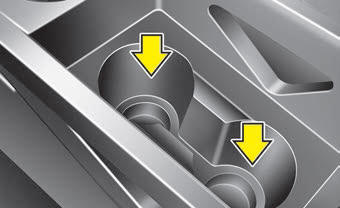

Front Type A

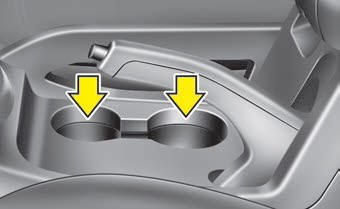

Front Type B

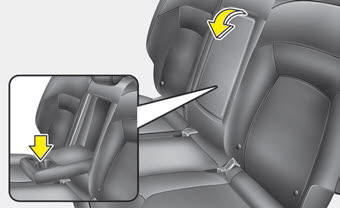

Rear
Cups or small beverage cans may be placed in the cup holders.
