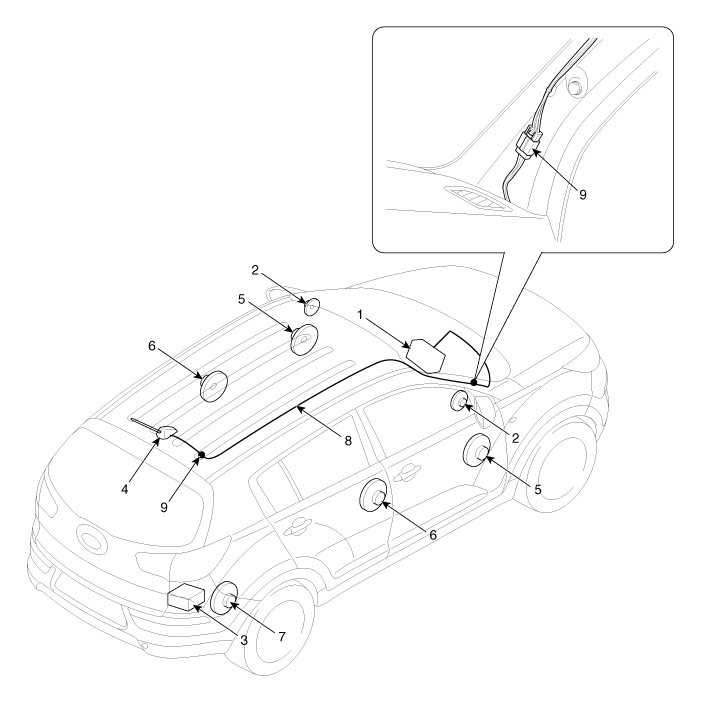

Component Location

1. Audio unit
2. Tweeter speaker
3. External amplifier
4. Roof antenna (Radio)
5. Front door speaker

6. Rear door speaker
7. Sub woofer speaker
8. Antenna feeder cable
9. Antenna cable connector

Specifications
Specifications Audio ItemSpecificationModelRADIO/CD/MP3 (PA30A, PA30B)RADIO/CD/MP3 (UVO2)Power supplyDV 14.4VAntenna80 PF 75 ?Tuning typePLL synthesized tuningLoad impedance4 ? x 4Internal : 4 ? ...

Audio Unit: Components and Components Location
Components Connector Pin Information No.Connector AConnector B1Speaker RL (+)MM CAN HIGH 2Speaker FL (+)-3Speaker FR (+)-4Speaker RR (+)Steering Remote5--6-USB D (+)7-USB/iPOD VDD8Illuminat ...
