Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque :

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.	Jack up the vehicle.

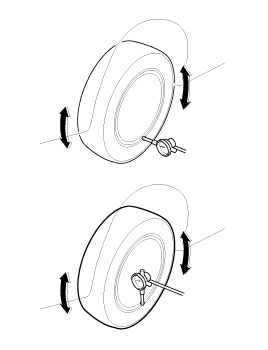

Measure the wheel Run-out by using a dial indicator as illustration below.

Run-out	Aluminum	Steel
Radial mm(in.)	Below 0.3(0.012)	Below 1.0(0.039)
Axial mm(in.)	Below 0.3(0.012)	Below 0.6(0.024)

3.	If measured value exceeds the standard value, replace the wheel.

Tire: Repair procedures

Tire wear 1. Measure the tread depth of the tires. Tread depth [limit] : 1.6 mm (0.063 in.) 2. If the remaining tread (A) depth is less than the limit, replace the tire. &nbs ...

Alignment: Repair procedures

Front Wheel Alignment When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always position the vehicle o ...
