Projected Dimensions |
Front side member tooling hole (O6.5) | Side cover mounting hole (O8) | Front sub frame mounting hole (O17) |
Front sub frame mounting hole (O18) | Front side member rear extension tooling hole (O8) | Propeller shaft center bearing bracket hole (O14) |
Rear floor front reinforcement tooling hole (O10) | Rear trailing arm mounting hole (O17) | Rear suspension mounting hole (O28) |
Rear floor side member tooling hole (O14.5) | Rear floor side member tooling hole (O15) |

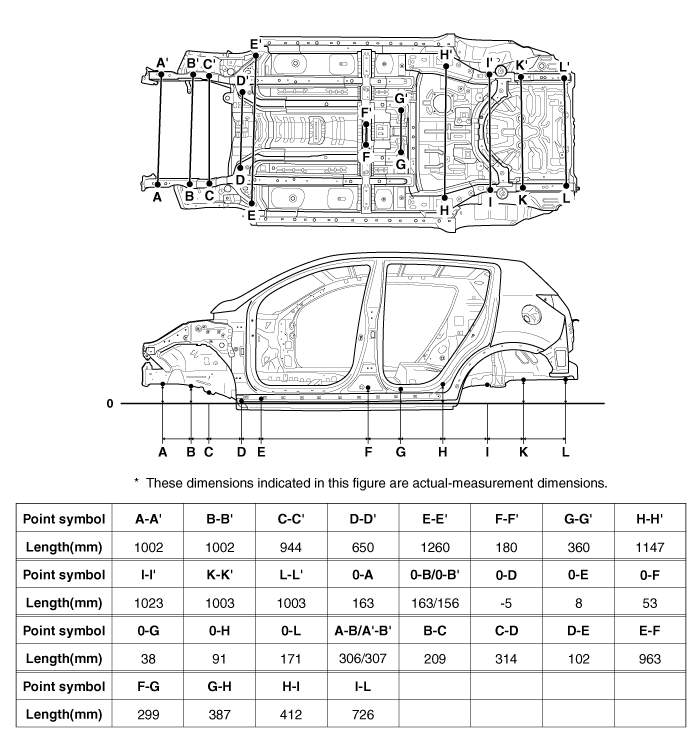

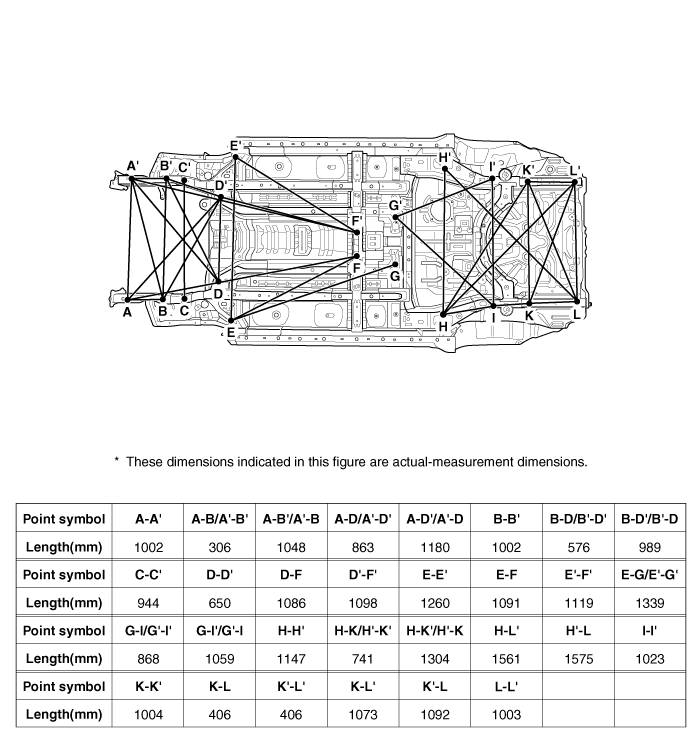

Actual-Measurement Dimensions |
Front side member tooling hole (O6.5) | Side cover mounting hole (O8) | Front sub frame mounting hole (O17) |
Front sub frame mounting hole (O18) | Front side member rear extension tooling hole (O8) | Propeller shaft center bearing bracket hole (O14) |
Rear floor front reinforcement tooling hole (O10) | Rear trailing arm mounting hole (O17) | Rear suspension mounting hole (O28) |
Rear floor side member tooling hole (O14.5) | Rear floor side member tooling hole (O15) |
Cylinder Block: Components and Components Location
Components
1. Piston ring2. Snap ring3. Piston4. Connecting rod 5. Connecting rod upper bearing6. Piston pin7. Connecting rod lower bearing8. Connecting rod bearing cap9. Ladder frame10. Oil filt ...
Schematic Diagrams
Circuit Diagram (1)
Circuit Diagram (2)
Harness Connector
Pin Function (Connector A)Pin Function (Connector A)1Ignition1Pressure side impact sensor [Driver] High2 -2Side impact ...
