Kia Sportage: To set cruise control speed

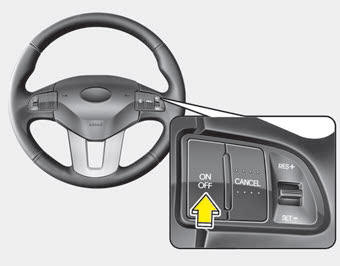

1.Push the cruise ON-OFF button on the steering wheel, to turn the system on. The CRUISE indicator light in the instrument cluster will illuminate.
2.Accelerate to the desired speed, which must be more than 40 km/h (25 mph).

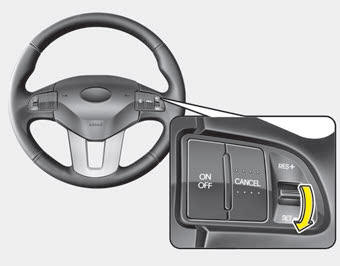

3.Push the - SET switch, and release it at the desired speed. The SET indicator light in the instrument cluster will illuminate. Release the accelerator at the same time. The desired speed will automatically be maintained.
On a steep grade, the vehicle may slow down or speed up slightly while going downhill.
Cruise control system
1.Cruise indicator
2.Cruise set indicator
The cruise control system allows you to program the vehicle to maintain a constant
speed without pressing the accelerator pedal.
This system is designe ...
To increase cruise control set speed
Follow either of these procedures:
Push the RES + switch and hold it. Your vehicle will accelerate. Release
the switch at the speed you want.
Push the RES + switch and release it immediatel ...
Other Information:
Reset items
Items should be reset after the battery has been discharged or the battery has
been disconnected.
Auto up/down window (See section 4)
Sunroof (See section 4)
Trip computer (See section 4)
...
Output Speed Sensor: Specifications
Specifications
? Type: Hall effect sensor
Operation condition (°C)°F(-40~150) -40~302Air gap (mm)in.(0.25~0.70) 0.0098~0.0276Output voltage (V)High1.18 ~ 1.68Low0.59 ~ 0.84
...
