Kia Sportage: To defrost outside windshield

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Features of your vehicle / Windshield defrosting and defogging / Automatic climate control system / To defrost outside windshield

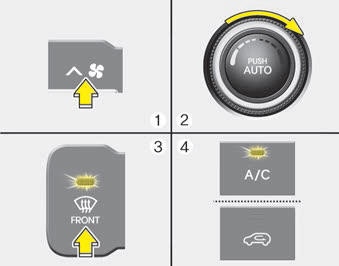

1.Set the fan speed to the highest position.

2.Set the temperature to the extreme hot (HI) position.

3.Press the defroster button ().

4.The outside (fresh) air position will be selected automatically and the air conditioning will turn on according to the detected ambient temperature.

To defog inside windshield

1.Set the fan speed to the desired position. 2.Select desired temperature. 3.Press the defroster button (). 4.The outside (fresh) air position will be selected automatically and the air conditi ...

Defogging logic

To reduce the possibility of fogging up the inside of the windshield, the air intake or air conditioning is controlled automatically according to certain conditions such as or position. To canc ...
