Kia Sportage: Start/Stop Button: Components and Components Location

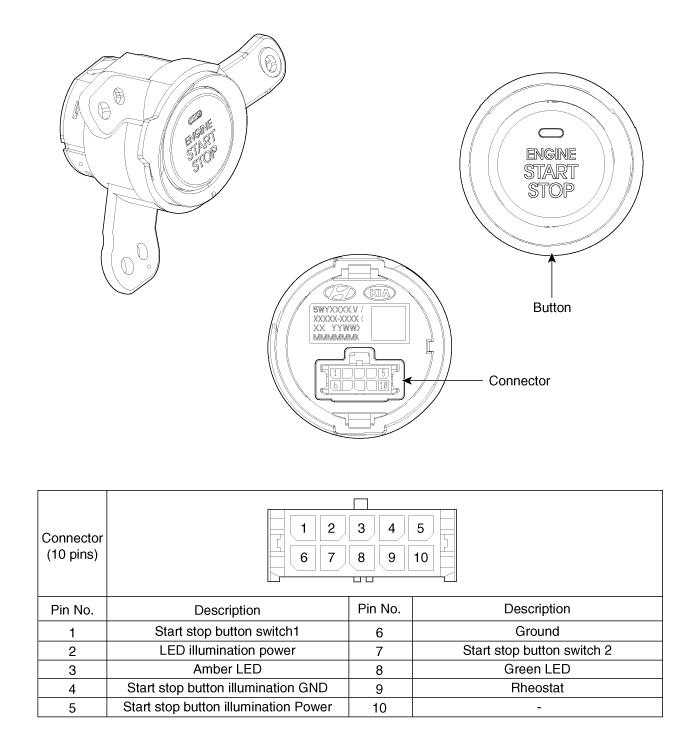

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Button Engine Start System / Start/Stop Button: Components and Components Location

Description and Operation

Description System Overview The System offers the following features: – Human machine interface through a 1-stage button, for terminal switching and engine start. – Control of e ...

Start/Stop Button: Repair procedures

Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the cluster fascia panel. (Refer to the BD group - "Crash pad") 3. Disconnect the connector (A). 4. Remove the start ...

Other Information:

Special Service Tools
Special Service Tools Tool Name / NumberIllustrationDescriptionEngine support fixture (bar)09200-3N000Used for holding engine assembly when removing / installing transaxleUsed with the supporter ...

Starter Relay: Repair procedures
Inspection 1. Remove the fuse box cover. 2. Remove the starter relay (A). 3. Using an ohmmeter, check that there is continuity between each terminal. TerminalContinuity30 - 87NO85 - 86Y ...
