Kia Sportage: Specifications - Fuses - Maintenance - Kia Sportage SL Owners ManualKia Sportage: Specifications

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Maintenance / Fuses / Specifications

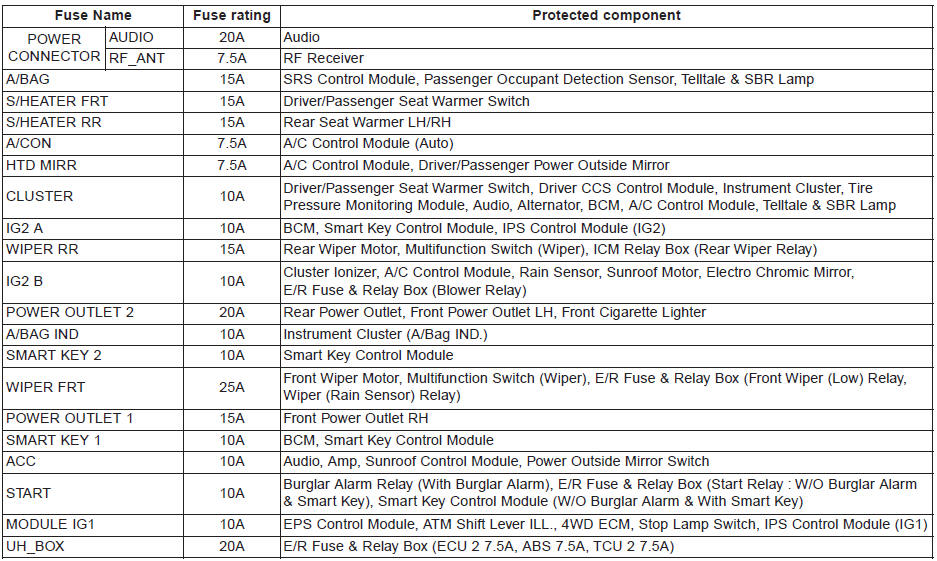

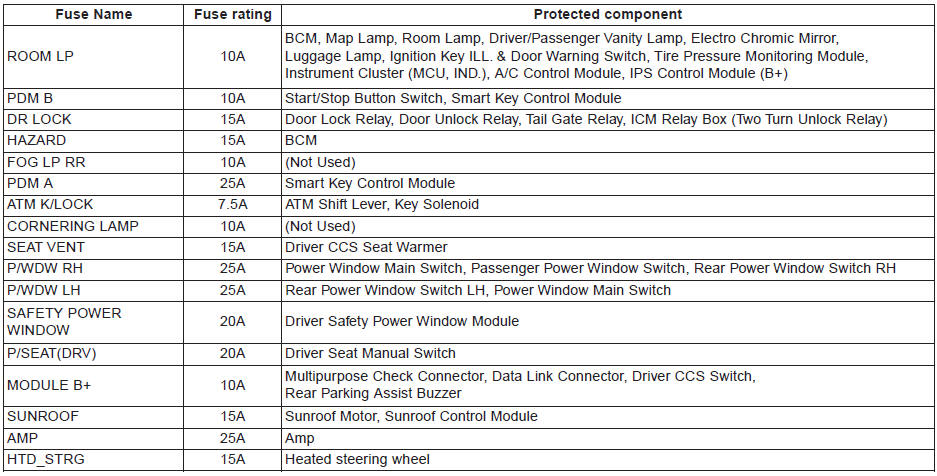

Inner fuse panel

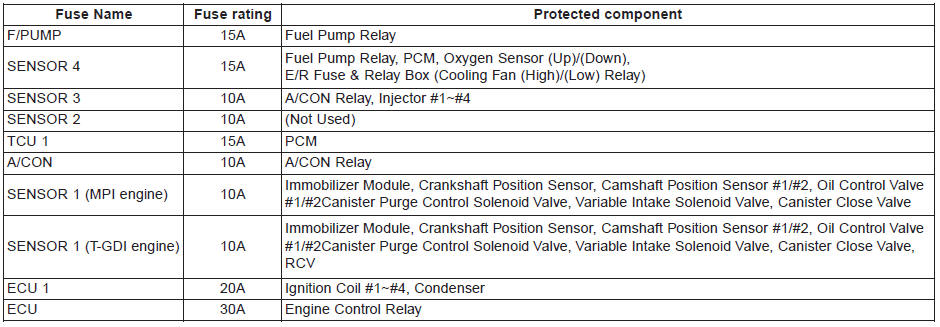

Engine compartment fuse panel

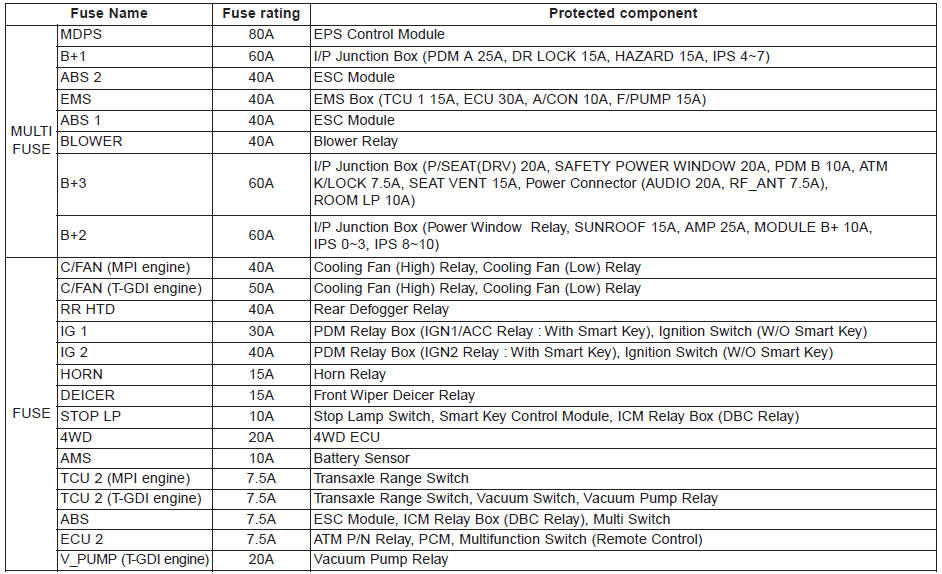

Engine compartment main fuse panel (EMS Box)

Engine compartment fuse panel
✽ NOTICE The actual fuse/relay panel label may differ depending on equipment/ options. ...
