Kia Sportage: Side impact air bag - Air bag - advanced supplemental restraint system - Safety features of your vehicle - Kia Sportage SL Owners ManualKia Sportage: Side impact air bag

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Safety features of your vehicle / Air bag - advanced supplemental restraint system / Side impact air bag

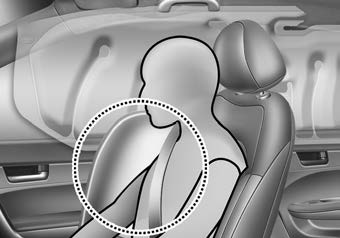

Your vehicle is equipped with a side impact air bag in each front seat.

The purpose of the air bag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt alone.

WARNING - Unexpected deployment

Avoid impact to the side impact airbag sensor when the ignition switch is ON to prevent unexpected deployment of the side impact air bag.

WARNING - Deployment

Do not install any accessories including seat covers, on the side or near the side air bag as this may affect the deployment of the side air bags.

WARNING - Flying objects

Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dangerous projectiles if the side airbag inflates.
