Kia Sportage: Shift Lever: Components and Components Location - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sportage SL Service & Repair ManualKia Sportage: Shift Lever: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Lever: Components and Components Location

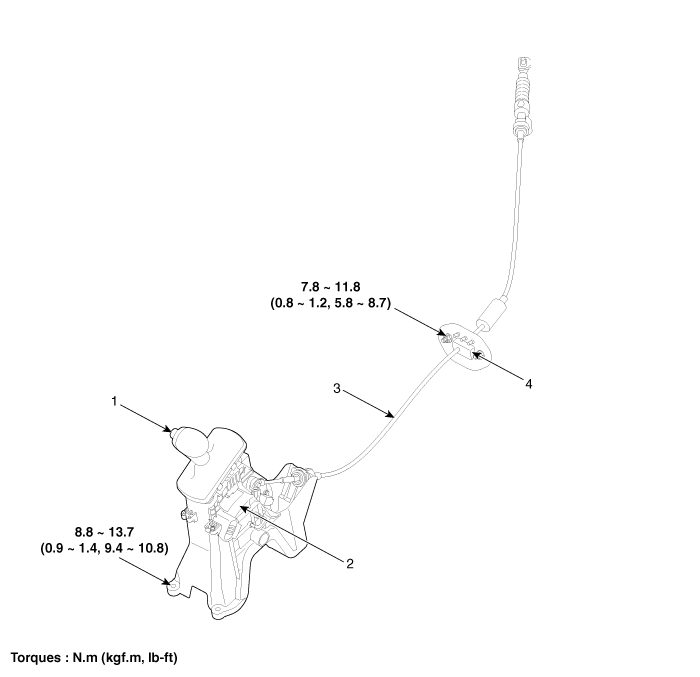

Components

1. Shift lever knob & boots assembly
2. Shift lever assembly
3. Shift cable assembly
4. Cable retainer
5. Shift cable retainer
