Kia Sportage: Recommended cold tire inflation pressures
All tire pressures (including the spare) should be checked when the tires are
cold. “Cold Tires” means the vehicle has not been driven for at least three hours
or driven less than 1.6 km (one mile).
Recommended pressures must be maintained for the best ride, vehicle handling,
and minimum tire wear.
For recommended inflation pressure, refer to “Tire and wheels” in section 8.

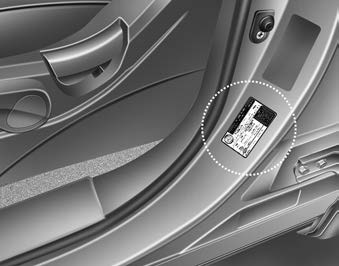

All specifications (sizes and pressures) can be found on a label attached to
the driver’s side center pillar.
WARNING - Tire underinflation
Inflate your tires consistent with the instructions provided in this manual.
Severe underinflation can lead to severe heat build-up, causing blowouts, tread
separation and other tire failures that can result in the loss of vehicle control.
This risk is much higher on hot days and when driving for long periods at high speeds.
- Underinflation also results in excessive wear, poor handling and reduced
fuel economy. Wheel deformation also is possible. Keep your tire pressures at
the proper levels. If a tire frequently needs refilling, have it checked by
an authorized Kia dealer.
- Overinflation produces a harsh ride, excessive wear at the center of the
tire tread, and a greater possibility of damage from road hazards.
- Warm tires normally exceed recommended cold tire pressures by 28 to 41 kPa
(4 to 6 psi ). Do not release air from warm tires to adjust the pressure or
the tires will be underinflated.
- Be sure to reinstall the tire inflation valve caps. Without the valve cap,
dirt or moisture could get into the valve core and cause air leakage. If a valve
cap is missing, install a new one as soon as possible.
Always observe the following:
- Check tire pressure when the tires are cold. (After vehicle has been parked
for at least three hours or hasn't been driven more than 1.6 km (one mile) since
startup.)
- Check the pressure of your spare tire each time you check the pressure of
other tires.
- Never overload your vehicle. Be careful not to overload a vehicle luggage
rack if your vehicle is equipped with one.
- Worn, old tires can cause accidents. If your tread is badly worn, or if
your tires have been damaged, replace them.
For proper maintenance, safety, and maximum fuel economy, you must always maintain
recommended tire inflation pressures and stay within the load limits and weight
distribution recommended for your ...
Check your tires once a month or more.
Also, check the tire pressure of the spare tire.
How to check
Use a good quality gauge to check tire pressure. You can not tell if your tires
are properly i ...
