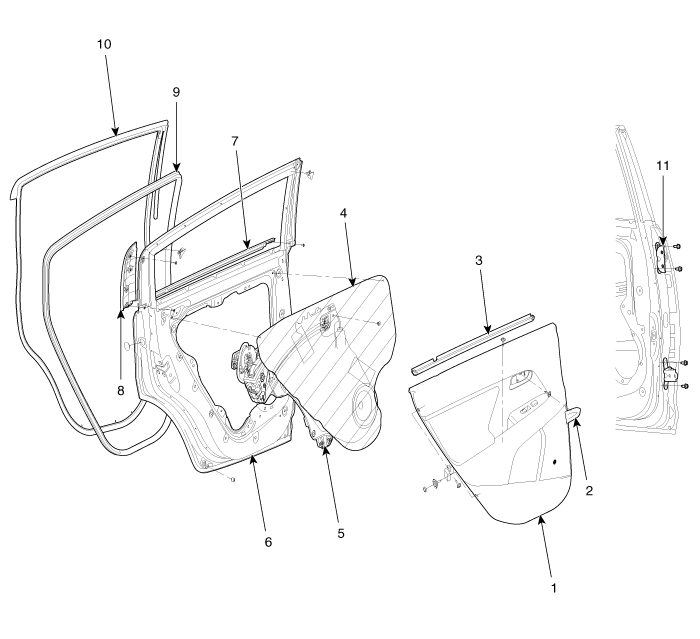

Components

1. Rear door trim
2. Rear door inside handle cap
3. Rear door belt inside weatherstrip
4. Rear door trim seal
5. Rear door module
6. Rear door panel
7. Rear door belt weatherstrip
8. Rear door frame garnish
9. Rear door body side weatherstrip
10. Rear door side weatherstrip
11. Rear door hinge
