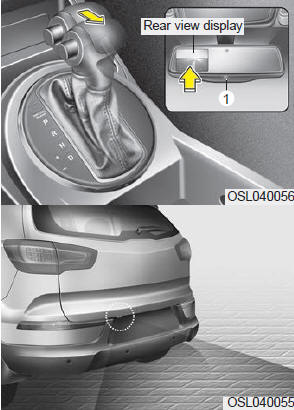

The Rear camera display will activate when the back up light is ON with the ignition switch ON and the shift lever in the R (Reverse) position.
This system is a supplemental system that shows behind the vehicle through the rearview display mirror while backing-up.
The Rear-camera display may be turned off by pressing the ON/OFF button (1) when the Rear-camera display is activated.
To turn the camera on again, press the ON/OFF button again when the ignition switch is on and the shift lever in R (Reverse). Also, the camera will turn on automatically whenever the ignition switch is turned off and on again.
Never rely solely on the Rear Camera Display when backing.
Detailed information for Rear-camera display on the navigation system is described in a separately supplied manual.
