Kia Sportage: Master Cylinder: Components and Components Location - Brake System - Brake System - Kia Sportage SL Service & Repair ManualKia Sportage: Master Cylinder: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Brake System / Brake System / Master Cylinder: Components and Components Location

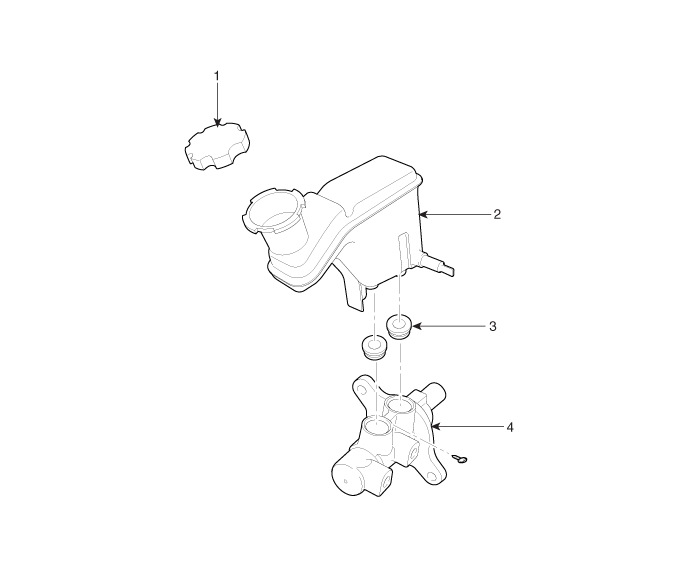

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder
