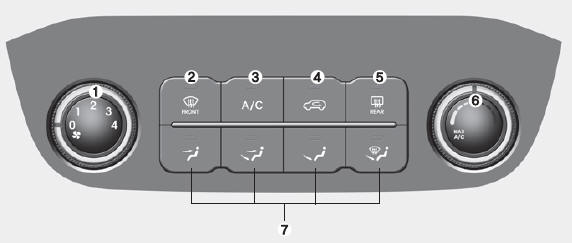

Kia Sportage: Manual climate control system

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Features of your vehicle / Manual climate control system

Rear window defroster

The defroster heats the window to remove frost, fog and thin ice from the rear window, while the engine is running. To activate the rear window defroster, press the rear window defroster button ...

Heating and air conditioning

1.Start the engine. 2.Set the mode to the desired position. For improving the effectiveness of heating and cooling; - Heating: - Cooling: 3.Set the temperature control to the desired position. ...
