Type A
Type B

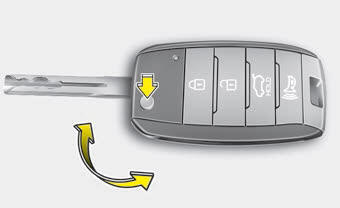

To unfold the key, press the release button then the key will unfold automatically.
To fold the key, fold the key manually while pressing the release button.
CAUTION
Do not fold the key without pressing the release button. This may damage the key.
Type C
To remove the mechanical key, press and hold the release button(1) and remove the mechanical key (2).
To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.
WARNING - Ignition key (Smart key)
Never leave the keys in your vehicle with unsupervised children. Leaving children unattended in a vehicle with a manual ignition key or a smart key is dangerous.
Children copy adults and they could place the key in the ignition switch or press the start button. The key would enable children to operate power windows or other controls, or even make the vehicle move, which could result in serious bodily injury or death.
WARNING - Aftermarket key
Use only Kia original parts for the ignition key in your vehicle. If an aftermarket key is used, the ignition switch may not return to ON after START. If this happens, the starter will continue to operate causing damage to the starter motor and possible fire due to excessive current in the wiring.
