Kia Sportage: If you do decide to pull a trailer
Here are some important points if you decide to pull a trailer:
- Consider using a sway control. You can ask a hitch dealer about sway control.
- Do not do any towing with your car during its first 2,000 km (1,200 miles)
in order to allow the engine to properly break in.Failure to heed this caution
may result in serious engine or transaxle damage.
- When towing a trailer, be sure to consult an authorized Kia dealer for further
information on additional requirements such as a towing kit, etc.
- Always drive your vehicle at a moderate speed (less than 100 km/h (60 mph)).
- On a long uphill grade, do not exceed 70 km/h (45 mph) or the posted towing
speed limit, whichever is lower.

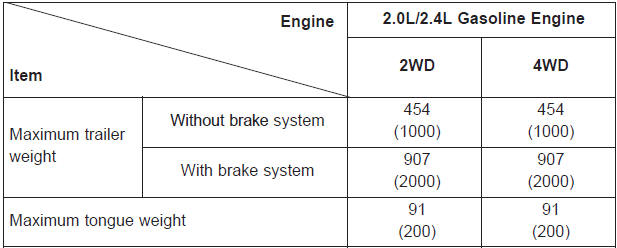

- The chart contains important considerations that have to do with weight:
2WD : 2-Wheel drive
4WD : 4-Wheel drive
To identify what the vehicle trailering capacity is for your vehicle, you should
read the information in “Weight of the Trailer” that appears later in this section.
Your vehicle will need service more often when you regularly pull a trailer.
Important items to pay particular attention to include engine oil, automatic transaxle
fluid, axle lubricant and coolin ...
What is the maximum safe weight of a trailer? It should never weigh more than
the maximum trailer weight with trailer brakes. But even that can be too heavy.
It depends on how you plan to use you ...
