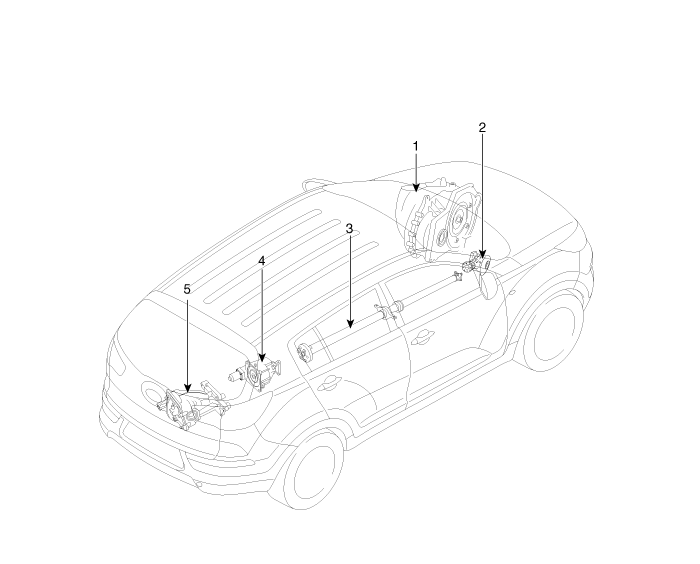

Components Location

1. Automatic transaxle
2. Transfer assembly
3. Propeller shaft
4. Coupling assembly
5. Differential assembly

Transfer Fluid: Repair procedures
Inspection     • Transfer oil should be inspected and refilled every 60000 km (40000 mile) / 4 year. 1. Remove the under cover (A). 2. Remove the oil fill ...

Front Wheel Transfer Assembly: Repair procedures
Removal     It is not recommended to overhaul the transfer assembly because a special three-dimensional measuring instrument is required to determine the sizes of the t ...
