Components

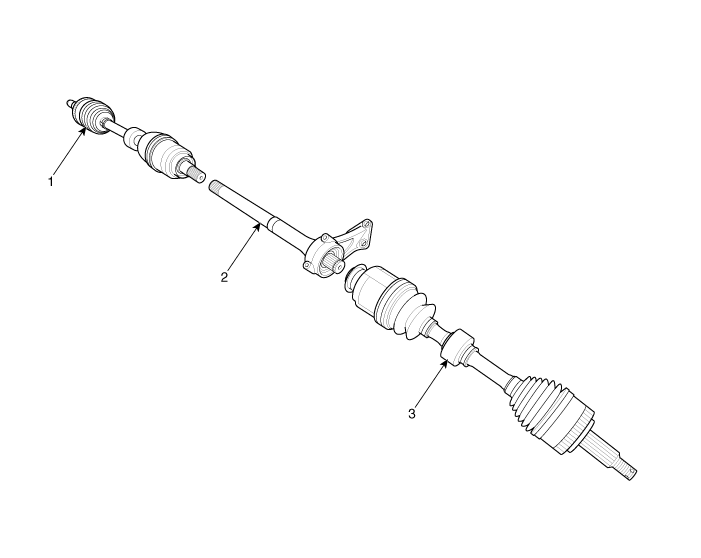

1. Front driveshaft (LH)
2. inner shaft
3. Front driveshaft (RH)

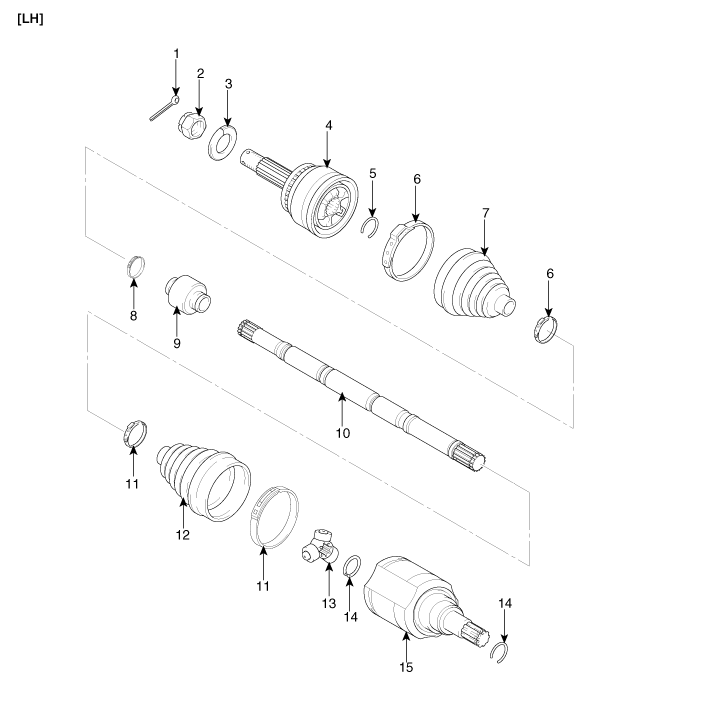

1. Split pin
2. Castle nut
3. washer
4. BJ assembly
5. Clip A
6. BJ boot band
7. BJ boot
8. Dynamic damper band
9. Dynamic damper
10. Shaft
11. VTJ boot band
12. VTJ boot
13. Spider assembly
14. Circlip
15. VTJ housing

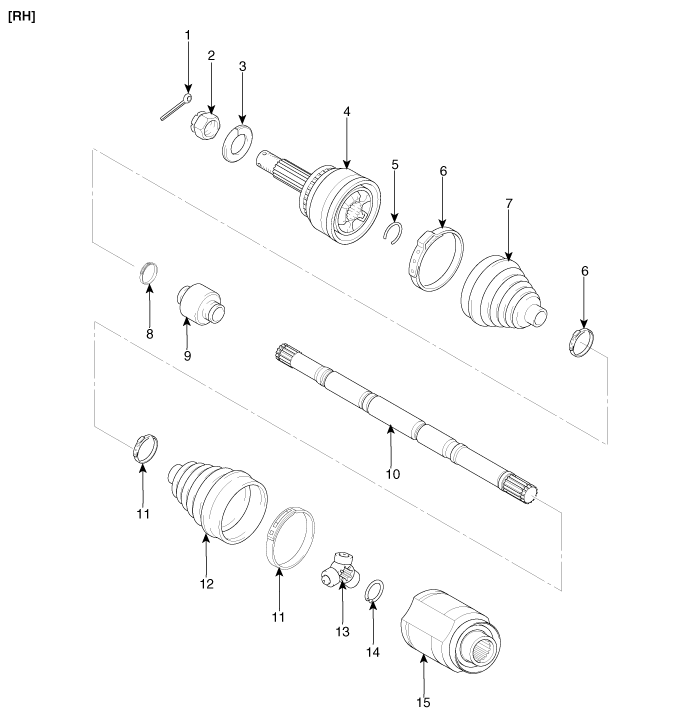

1. Split pin
2. Castle nut
3. Washer
4. BJ assembly
5. Clip A
6. BJ boot band
7. BJ boot band
8. Dynamic damper band
9. Dynamic damper
10. Shaft
11. VTJ boot band
12. VTJ boot
13. Spider assembly
14. Circlip
15. VTJ housing
