Kia Sportage: Engine compartment fuse panel

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Maintenance / Fuses / Engine compartment fuse panel

Instrument panel fuse panel

✽ NOTICE The actual fuse/relay panel label may differ depending on equipment/ options. ...

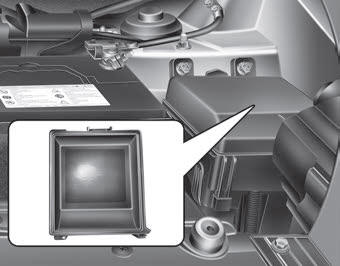

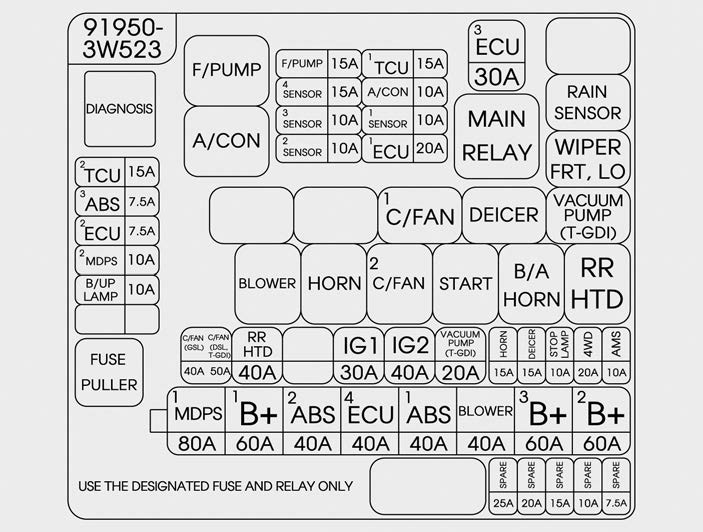

Engine compartment fuse panel

✽ NOTICE The actual fuse/relay panel label may differ depending on equipment/ options. ...

Other Information:

Components and Components Location
Component Location 1. Main relay2. Cooling fan relay (High)3. Windshield deicer relay4. Wiper relay (High)5. Wiper relay (Low)6. ATM relay7. Rear glass defogger relay8. Burglar horn relay 9. Star ...
