Kia Sportage: Driver Airbag (DAB) Module and Clock Spring: Components and Components Location - Airbag Module - Restraint - Kia Sportage SL Service & Repair ManualKia Sportage: Driver Airbag (DAB) Module and Clock Spring: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring: Components and Components Location

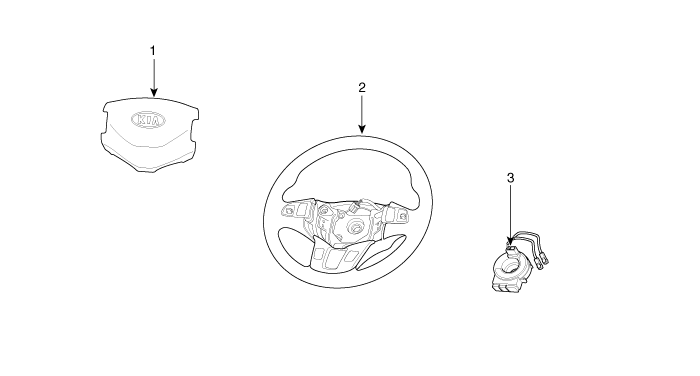

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
