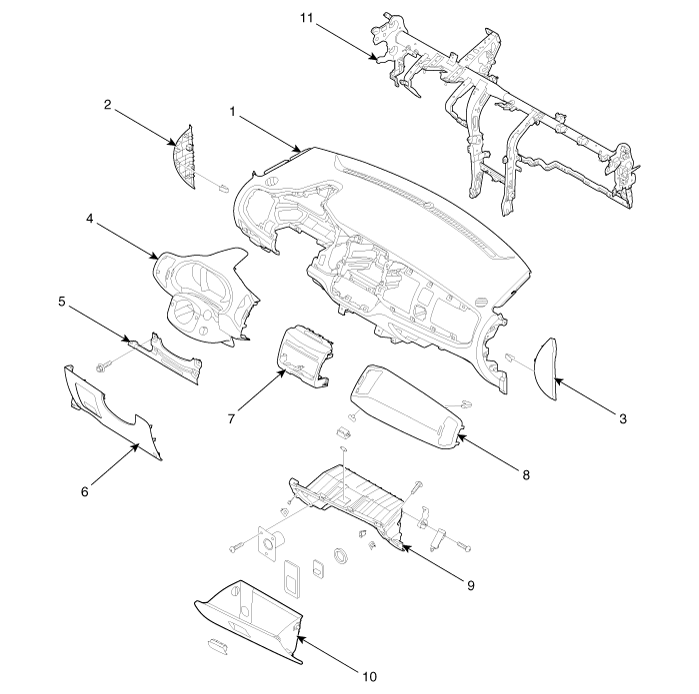

Components

1. Main crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]
4. Cluster fascia panel
5. Reinforcing panel
6. Crash pad lower panel
7. Center facia panel
8. Crash pad garnish
9. Glove box housing
10. Glove box
11. Cowl cross bar assembly
