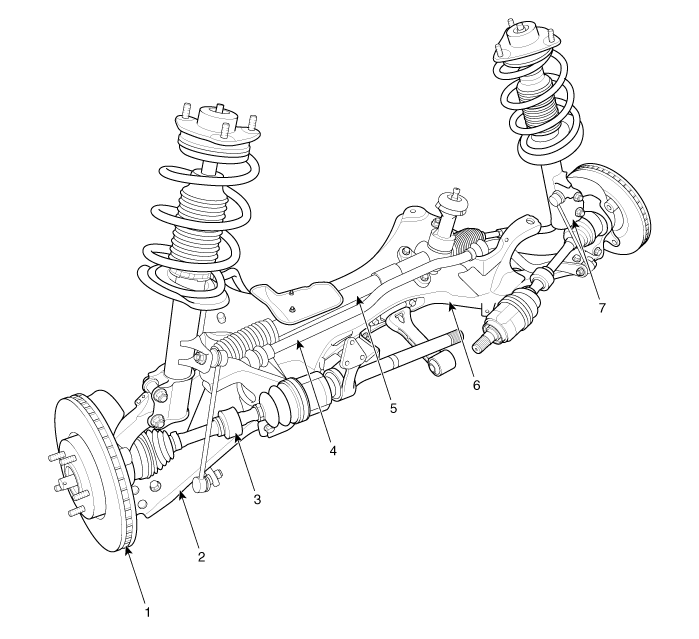

Components Location

1. Front axle
2. Front lower arm
3. Drive shaft
4. Stabilizer bar
5. Steering gearbox
6. Sub frame
7. Front strut assembly
