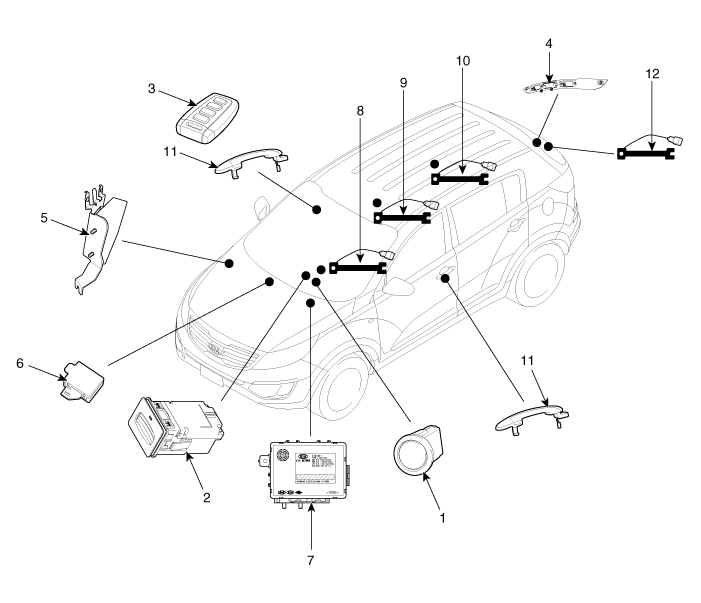

Component Location

1. Start Stop Button (SSB)
2. FOB key holder
3. FOB key
4. Tailgate switch
5. Smart key unit
6. RF receiver
7. BCM (Body Control Module)
8. Interior antenna 1
9. Interior antenna 2
10. Interior antenna 3
11. Door handle & door antenna
12. Bumper antenna
