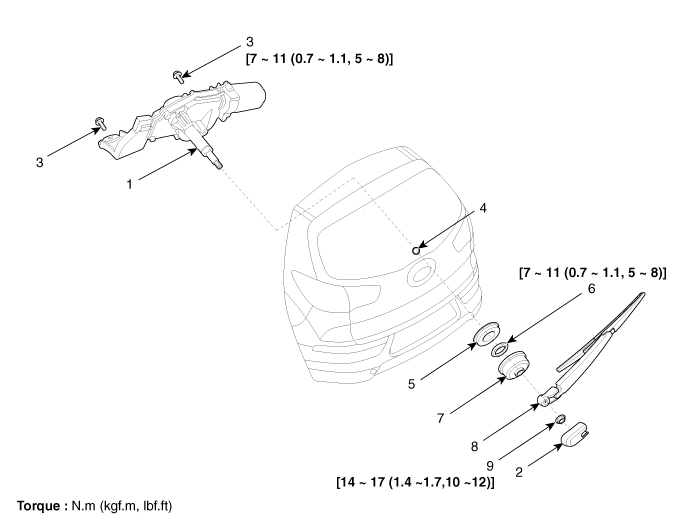

Component Location

1. Rear wiper motor assembly
2. Head cap
3. Rear wiper motor mounting bolt
4. Rear wiper motor mounting hole
5. Pad cap
6. Hexagonal nut
7. Cover
8. Rear wiper arm & blade
9. Rear wiper arm nut

Rear Wiper/Washer
...

Rear Wiper Motor: Repair procedures
Inspection Rear Wiper Motor 1. Remove the 4P connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively. 3. Check that ...
