Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Indicators And Gauges / Components and Components Location
| Component Location |

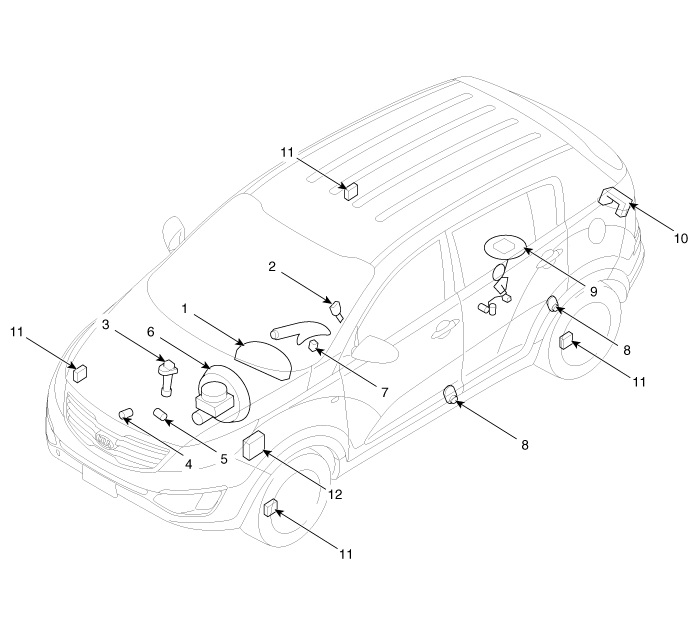

| 1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid level warning switch | 7. Parking brake switch 8. Door switch 9. Fuel gauge sender 10. Tailgate switch 11. Wheel speed sensor 12. ABS ECU |
Instrument Cluster: Components and Components Location
Components
...
Other Information:
ETC (Electronic Throttle Control) System: Troubleshooting
Fail-Safe Mode
ItemFail-SafeETC MotorThrottle valve stuck at 5°TPSTPS 1 faultECM looks at TPS2TPS 2 faultECM looks at TPS1TPS 1,2 faultThrottle valve stuck at 5°APSAPS 1 faultECM looks at APS 2 ...
Audio Unit: Components and Components Location
Components
Connector Pin Information
No.Connector AConnector B1Speaker RL (+)MM CAN HIGH 2Speaker FL (+)-3Speaker FR (+)-4Speaker RR (+)Steering Remote5--6-USB D (+)7-USB/iPOD VDD8Illuminat ...
