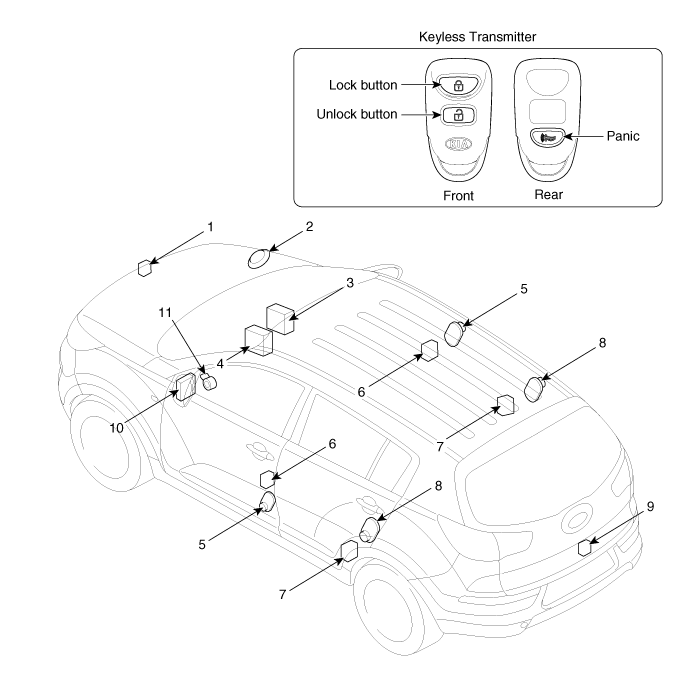

Component Location (1)

1. Hood switch
2. Burglar horn
3. RKE receiver
4. BCM (Body Control Module)
5. Front door switch
6. Front door lock actuator & switch
7. Rear door lock actuator & switch
8. Rear door switch
9. Tailgate release switch
10. SJB (Smart Junction Box)
11. Key warning switch

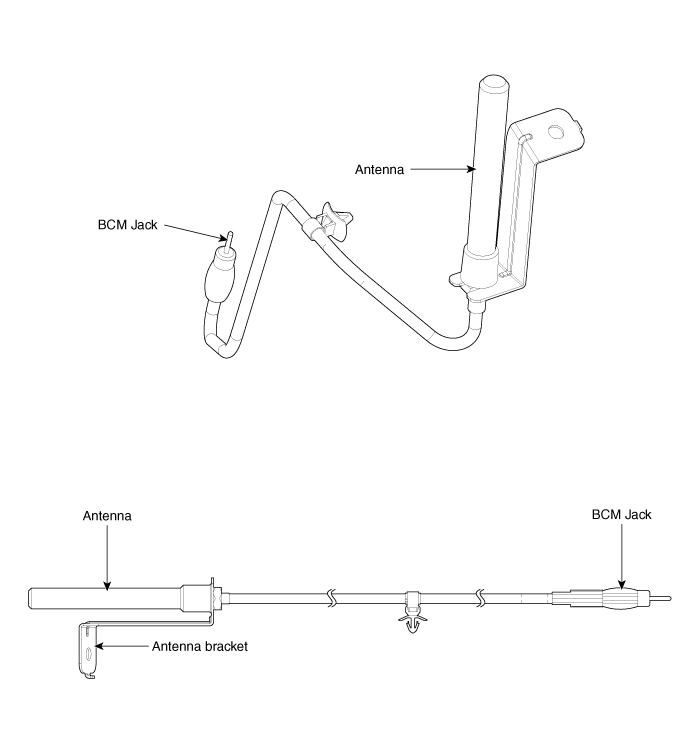

Component Location (2)

Specifications
Specification ItemDescriptionPower source3VOperating temperature-20°C ~ +60°CRF ModulationFSKRF frequency433.92MHzBattery1EA (CR2032)     An inappropriately disposed bat ...

Schematic Diagrams
Circuit Diagram ...
