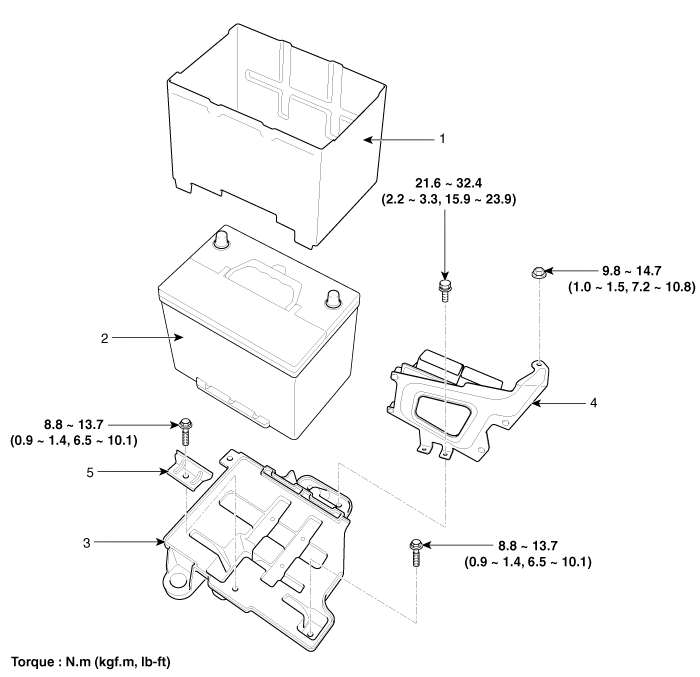

Components

1. Battery insulation pad
2. Battery
3. Battery tray
4. ECM & bracket assembly
5. Battery mounting bracket
