Kia Sportage: Automatic heating and air conditioning

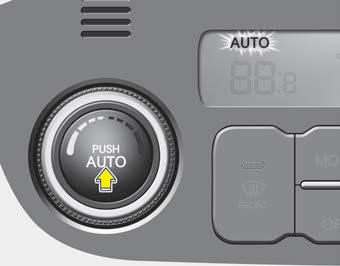

1.Press the AUTO button.
The modes, fan speeds, air intake and air-conditioning will be controlled automatically
according to the temperature setting.

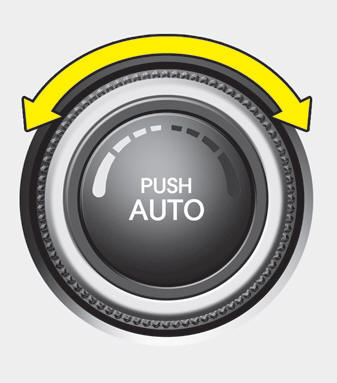

2.Turn the temperature control knob to set the desired temperature.
✽ NOTICE
- To turn the automatic operation off, select any button or switch of the
following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button (Press the button one more time to deselect
the front windshield defroster function. The ‘AUTO’ sign will illuminate on
the information display once again.)
- Fan speed control switch
The selected function will be controlled manually while other functions operate
automatically.
- For your convenience and to improve the effectiveness of the climate control,
use the AUTO button and set the temperature to 23°C/73°F.

✽ NOTICE
Never place anything over the sensor located on the instrument panel to ensure
better control of the heating and cooling system.
1. AUTO (automatic control) button
2. Driver's temperature control knob
3. A/C display
4. Mode selection button
5. Air conditioning button*
6. Fan speed control switch
7. Passenger's t ...
The heating and cooling system can be controlled manually by pressing buttons
or turning knob(s) other than the AUTO button. In this case, the system works sequentially
according to the order of b ...
