Kia Sportage: Accelerator Position Sensor (APS): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Accelerator Position Sensor (APS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Accelerator Position Sensor (APS): Schematic Diagrams

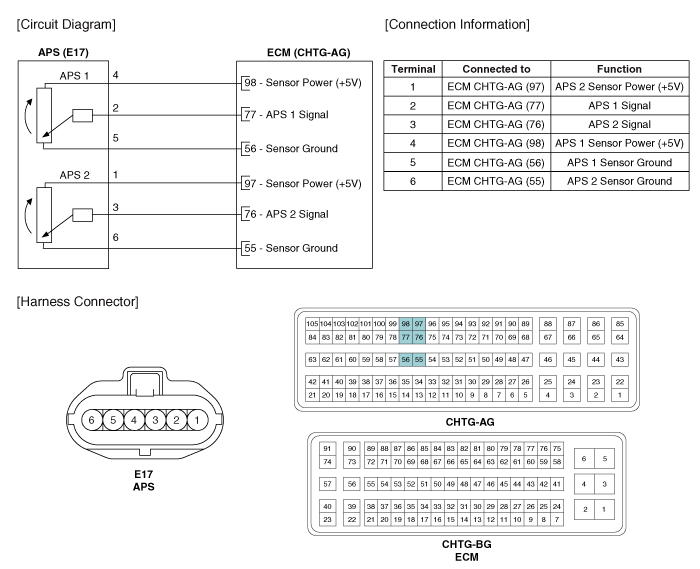

Circuit Diagram

Accelerator Position Sensor (APS): Specifications
Specification AcceleratorPositionOutput Voltage (V)APS1APS2C.T0.7 ~ 0.80.29 ~ 0.46W.O.T3.85 ~ 4.351.93 ~ 2.18 ...

Accelerator Position Sensor (APS): Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output voltage of the APS 1 and 2 at C.T and W.O.T. Specification: Refer t ...
