4WD ECU processes signals from various sensors and determines
the current road and driving conditions. The ECU then utilizes this
information to implement precision control over the 4WD coupling''s
multi-plate clutch and variably adjust the amount of torque delivered
tothe rear wheels.

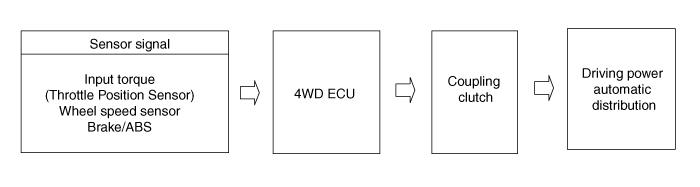

4WD ECU: Flow Diagram
Power Flow Diagram
4WD ECU Input&Output Diagram
...
